Product Detail

Absima SR4S 2.4GH 4-Channel Stick Radio w/ Receiver 2000022.

Functions

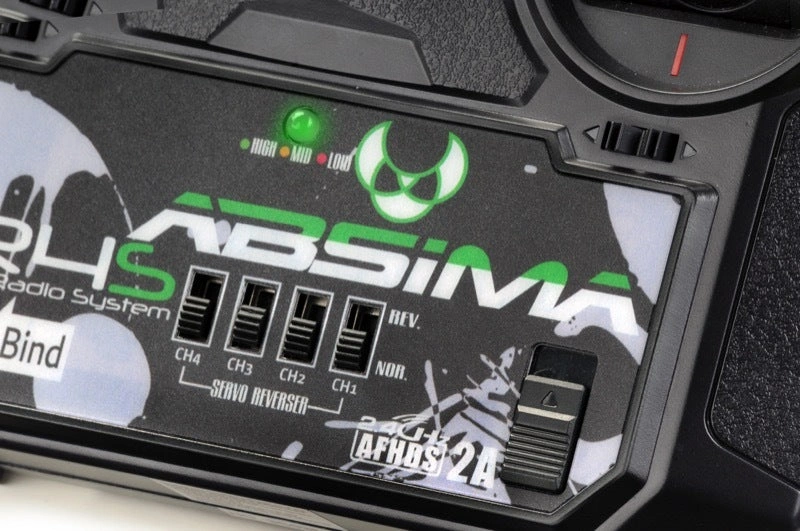

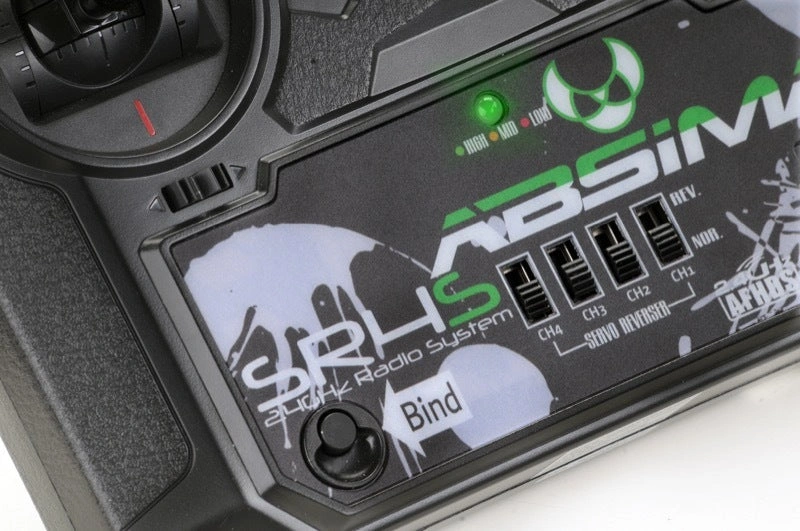

• Servo Reverse (the direction of rotation/switching of the individual channels can be changed using this function)

• Trim-Function for throttle and steering (setting the throttle neutral position and straight-ahead running)

• ST. D/R Function for setting the servo travel limit (steering servo only)

• There are also channels 3 & 4 for free assignment, which can be operated via 2 toggle switches.

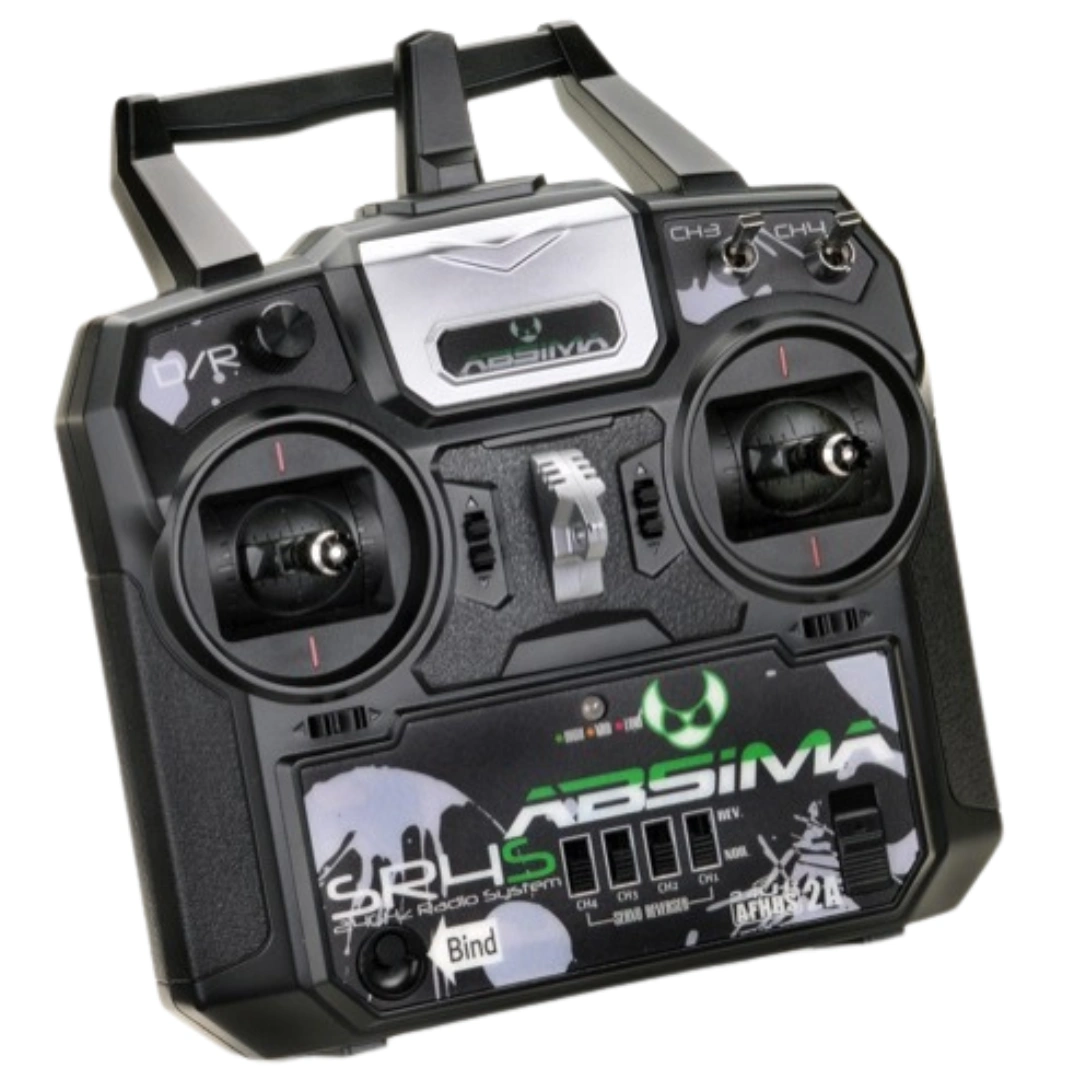

Radio Specifications

• 4 channel

• Frequency: 2.4GHz

• Protocol: AFHDS 2A

• Operating voltage: 6V DC (4* 1.5V AA Mignon)

• Low V Alarm: below 4.2V

• Temperature: 0°C - +60°C

• Weight: 320g

• Dimensions: 190*174*89mm

Receiver Specifications

• 2020012 - 4 channel mini receiver

• Frequency: 2.4GHz

• Protocol: AFHDS 2A

• Waterproof: Yes

• Operating voltage: 4.8V-7.4V

• Dimmensions: 35x30x13mm

• Weight: 15g

• Aerial length: 260mm

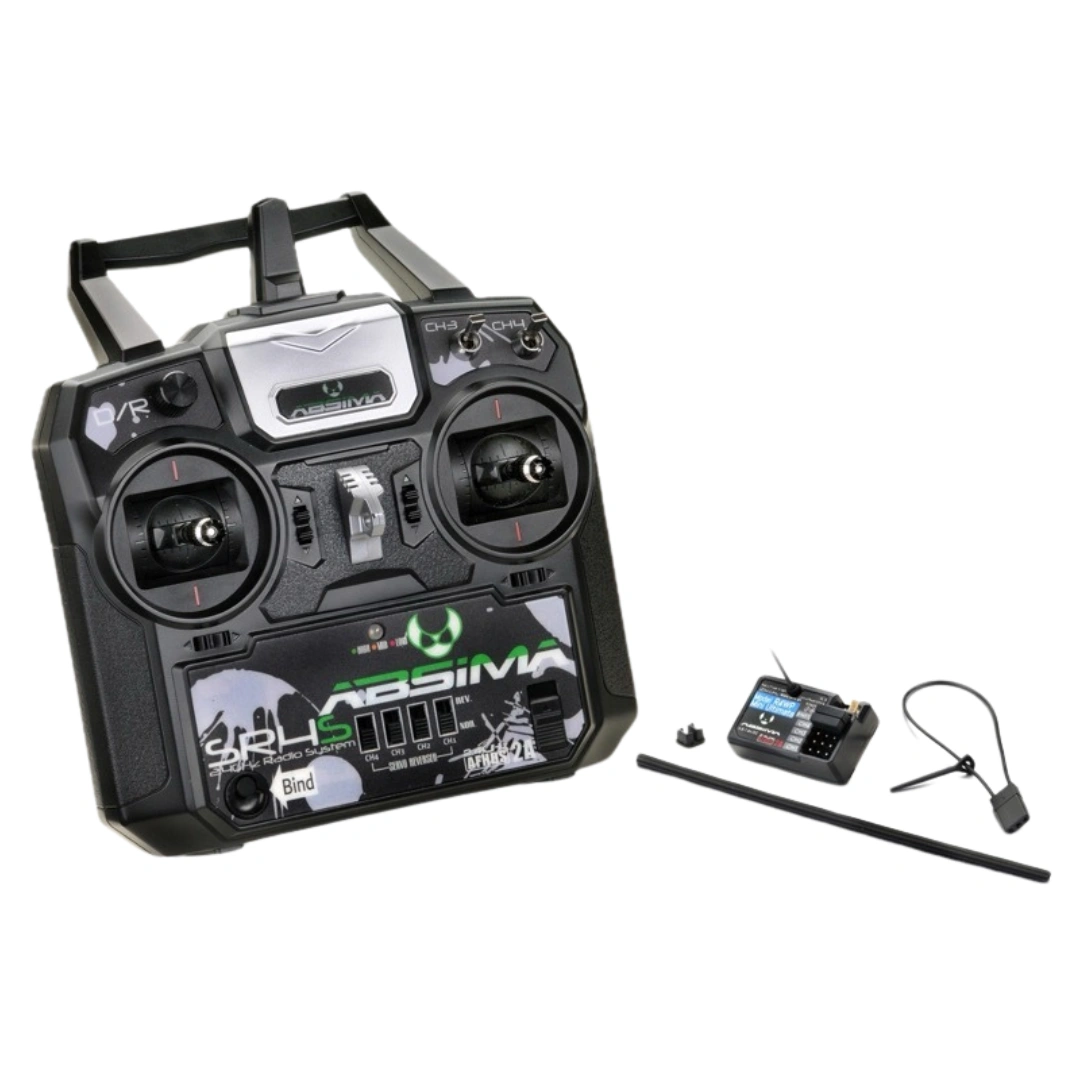

Included

• SR4S radio

• R4WP receiver

• Bind plug

• Aerial tube

• Manual
