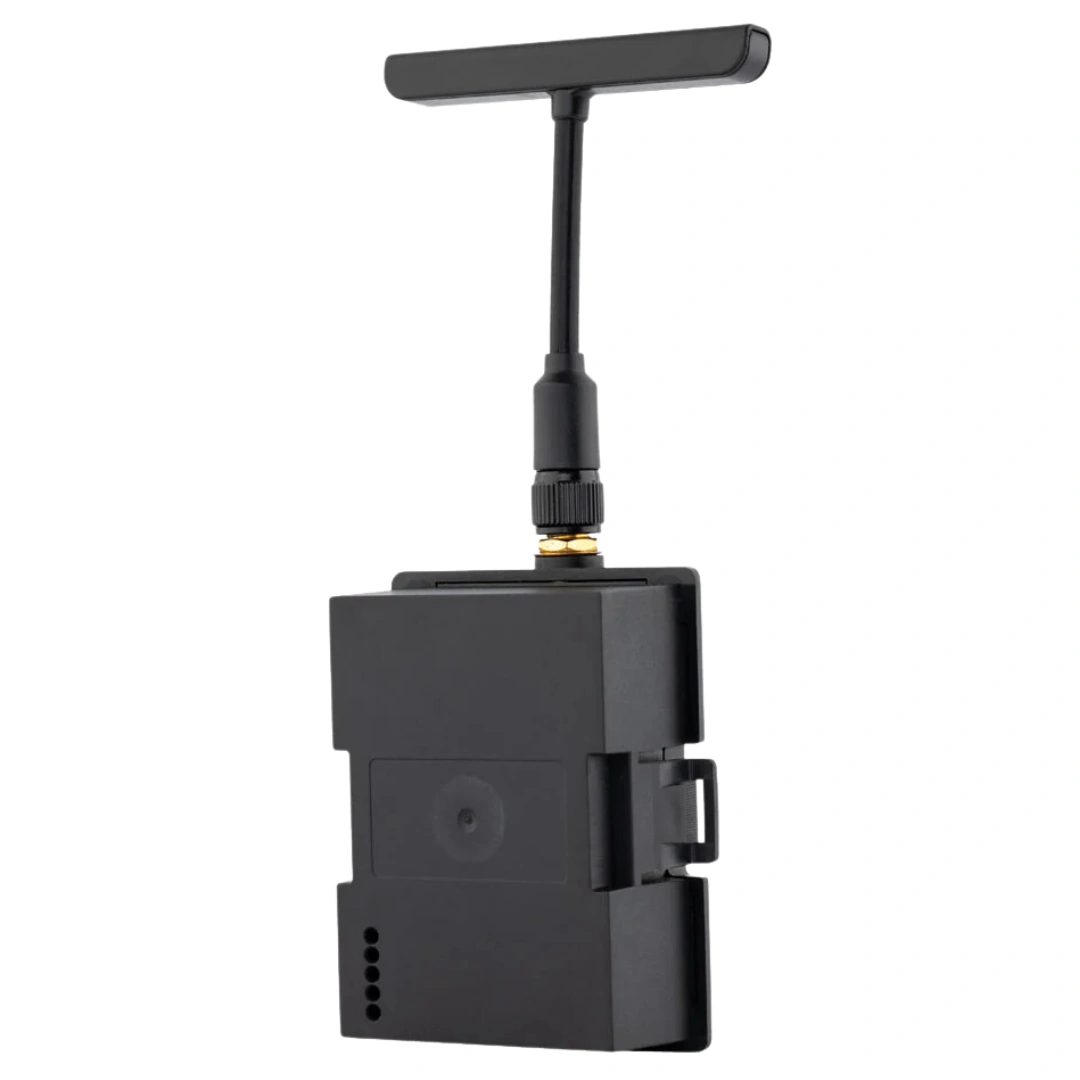

RadioMaster Ranger Micro 2.4Ghz ELRS RF Module

RadioMaster Ranger Micro: Unleash Precise 2.4GHz Control for Your RC Flights!

Unleash your inner adventurer with this extraordinary piece – a meticulously crafted blend of timeless design and unexpected delight. It’s not just an item; it's a story waiting to be told, a spark for your soul, and a little bit of magic to brighten your everyday. Prepare to be captivated.

$39.98 $79.95

num:

description

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

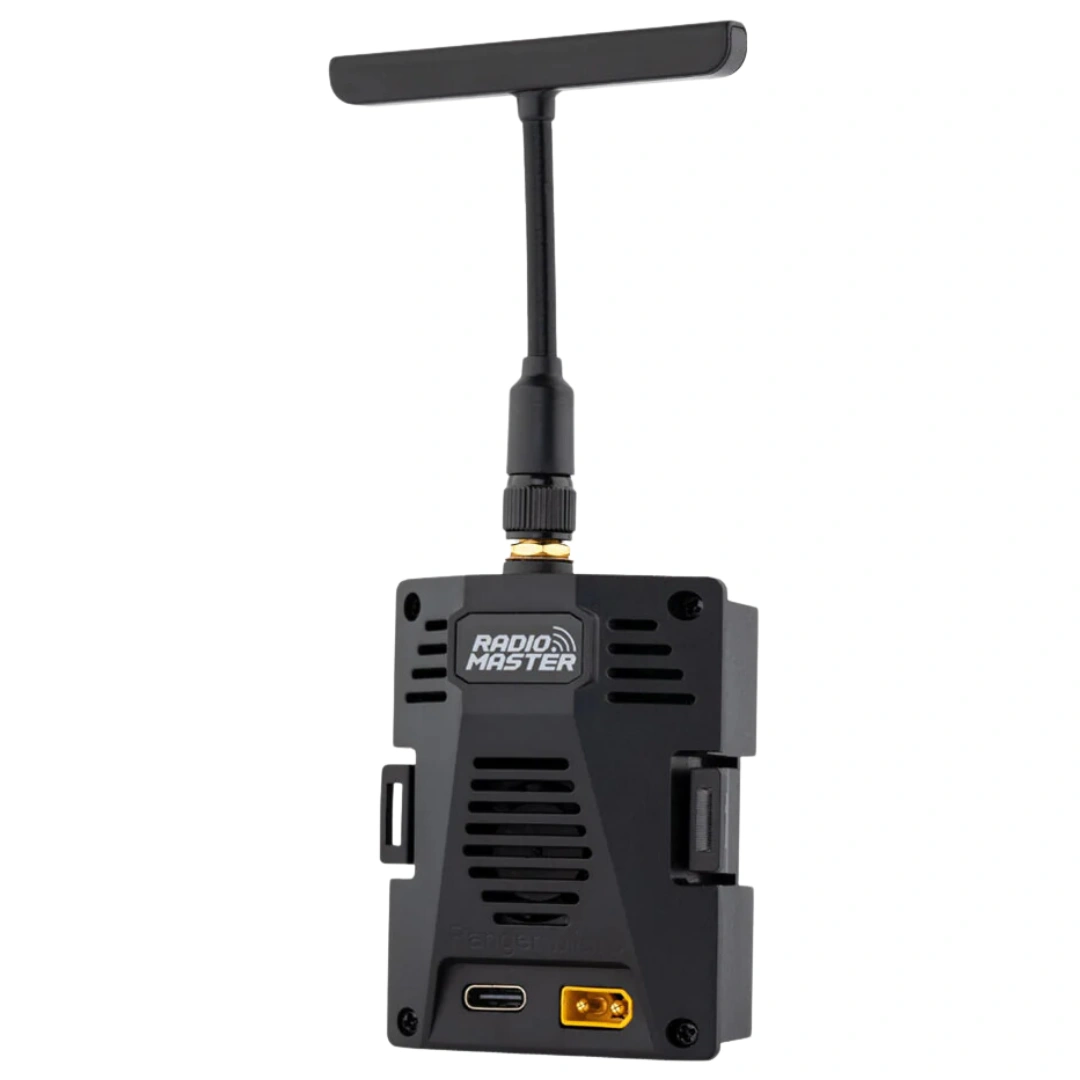

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Features

High-efficiency cooling system
Up to 1Watt Power output
Wifi and Bluetooth support
Packet rates up to F-1000Hz
T-antenna included
With the Micro connector, support TX16S MKII and TX12 MKII radio

Specifications

Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

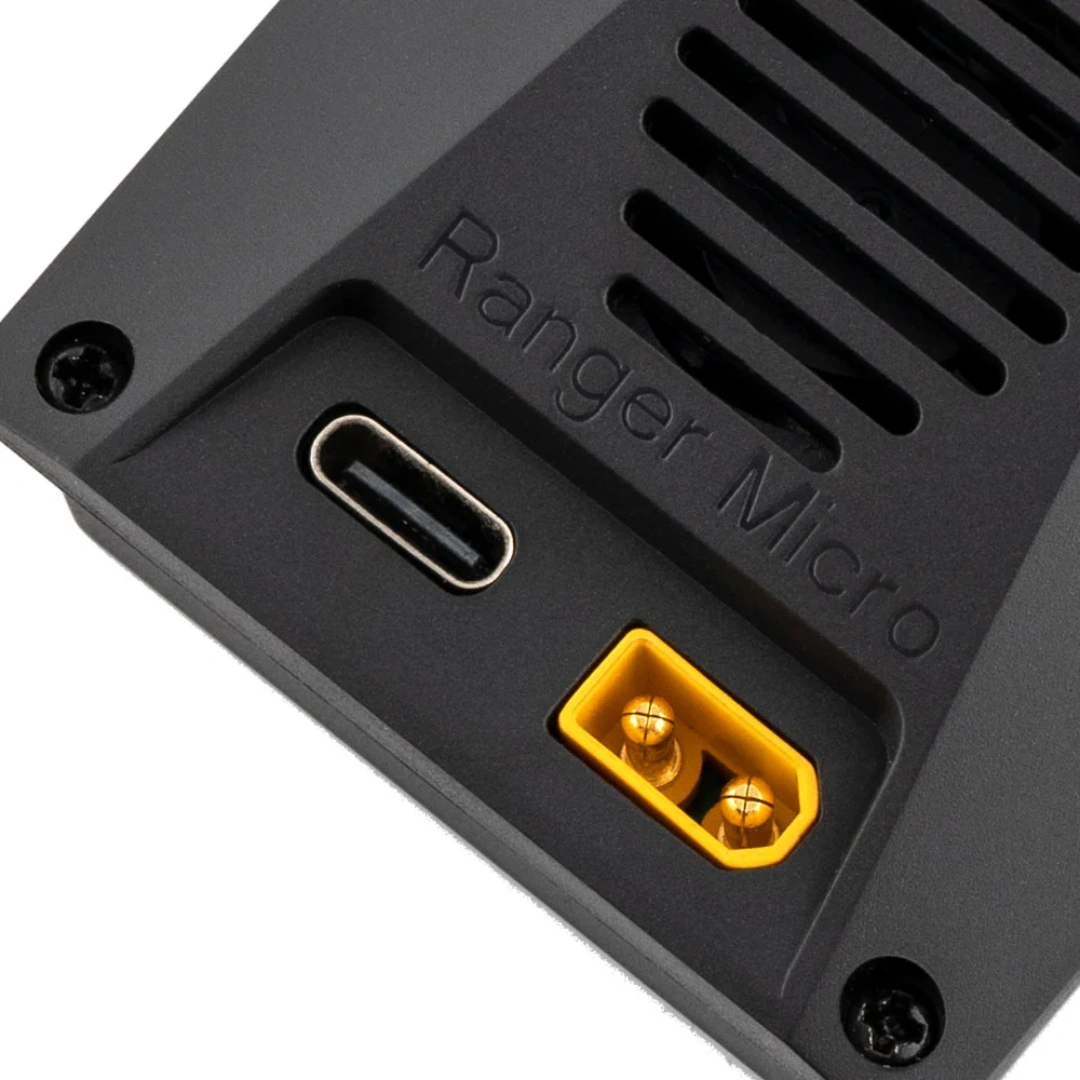

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
