Product Detail

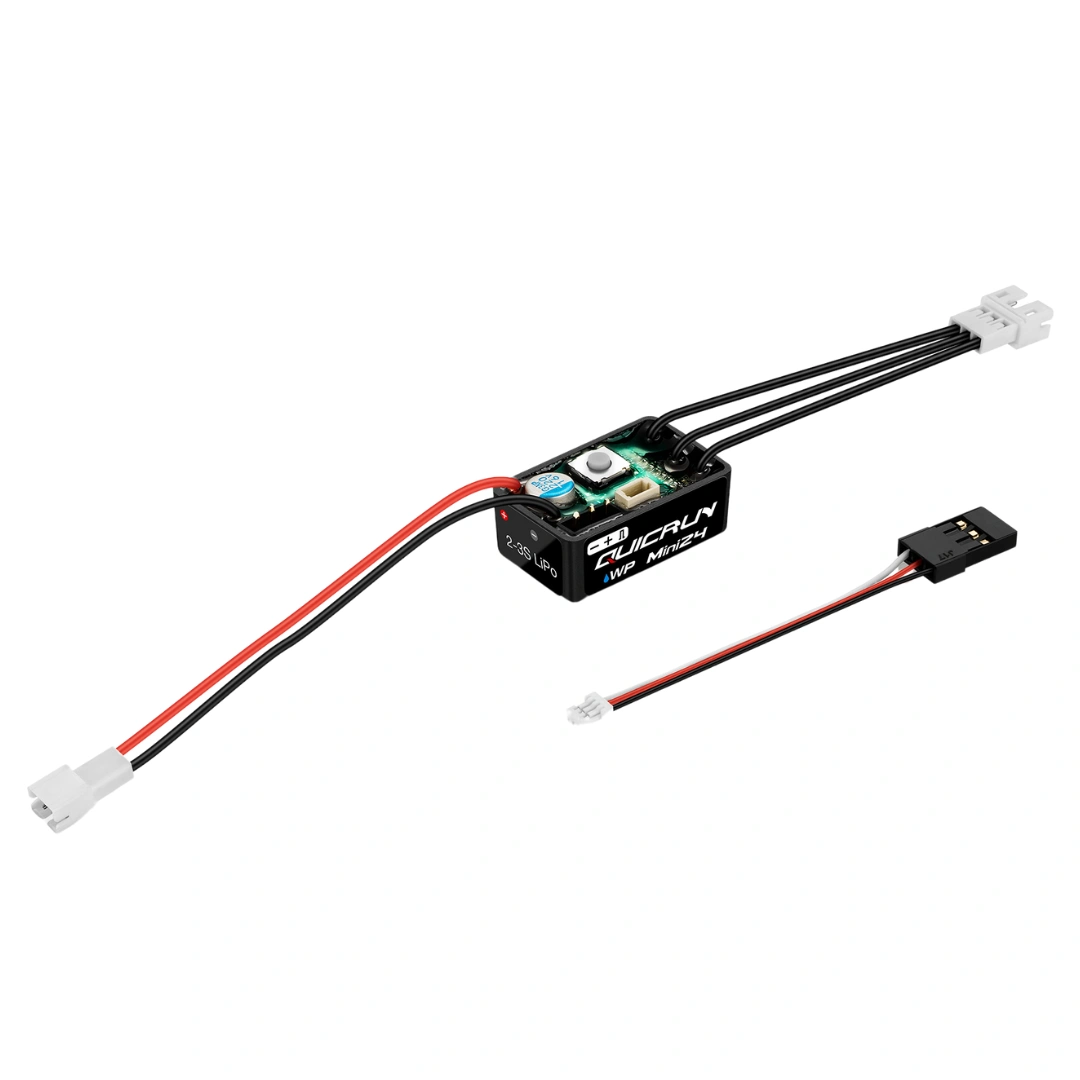

The QuicRun WP Mini 24 ESC is designed for 1/24th, 1/18th, and 1/16th scale vehicles. This versatile ESC supports both brushless and brushed motors and features a waterproof design, making it ideal for a range of RC applications.

Features

• Supports both brushless and brushed motors
• Sensorless operation for simplified setup
• Waterproof design for all-weather use
• Adjustable BEC output (6V/7.4V) for compatibility with various servos
• LED Program Box and LCD G2 Program Box support

Specifications

• Scale: 1/24th, 1/18th, 1/16th
• Continuous/Peak Current: 25A/60A
• Input Voltage: 2-3S Lipo
• BEC Output: 6V/7.4V adjustable, 2A (Switch mode)
• ESC Programming: LED Program Box, LCD G2 Program Box
• Waterproof: Yes
• Dimensions: 28 x 17.8 x 13mm
• Weight: 13.5g (including wires and connectors)

Includes

• QuicRun WP Mini 24 ESC
• Programming cable
• User manual

Applications

• Compatible with sensorless brushless and brushed motors
• Recommended motors: QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 brushed motors
• Suitable for 1/24th, 1/18th, 1/16th crawlers and vehicles
